LC-Y80

Description:

         Suspend mounted linear LED luminarie, housing made of high pressure extruded aluminum construction, die-cast aluminum end caps with no visible screws,  Surface treatment is the sand oxidation and Flame retardant PC honeycomb grille mask，UV and corrosion resistance, with beautiful appearance, the scientific proportion and reasonable dimensions, flexible installing methods, light body, excellent heat dissipation. The luminarie combined with the concept of indirect/direct lighting distributions, applying anti-glare diffuser and double transmission principle of secondary reflection, Flame-retardant PC honeycomb grille, without visible dark spot or light gaps in seamless continuous lighting system. Advanced thermal management technology to ensure consistency of LED life span, color temperature and maximize output lumens.
Applications: Office, Educational Institutes, Hospitals, Warehouses, Hospitality, Retails Etc.

Technical Data：

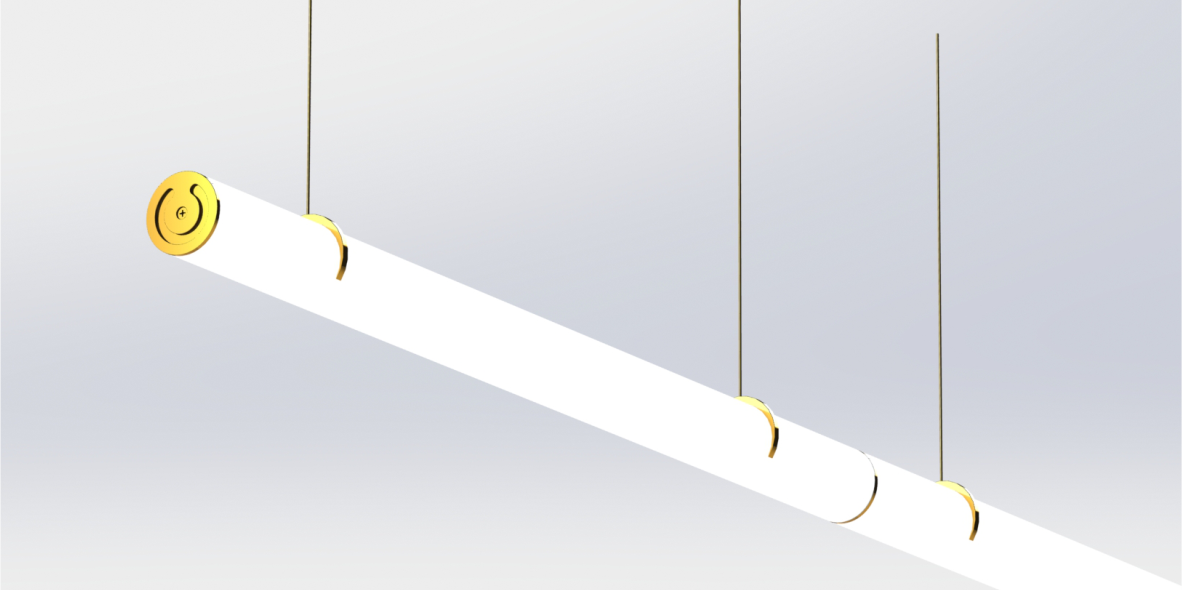

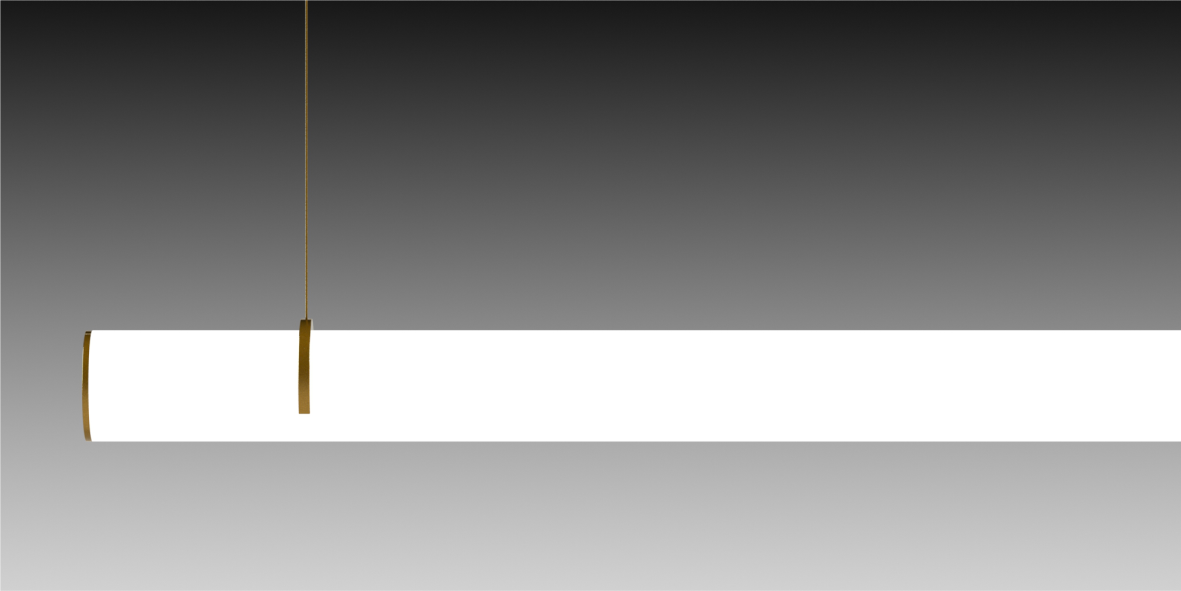

Product name:  Y80 Suspended luminaire

Type: Suspended luminaire

Housing material: High-quality Aluminum alloy

Surface finish: Fine sand oxidation (silver/brown gray/black)  Matte powder coating (matte white)

Diffuser material:Flame-retardant PC honeycomb grille

Light source: SMD

Luminaire efficiency:  105 lm /W

CRI: ＞83

Color temperature: 3000-6500K

Input voltage: 220-240V

Driver: High efficiency driver

Lifespan: 30000h

Electrical grade:  Ⅰ

Standard single fitting：
